6-axis Force Torque Sensors

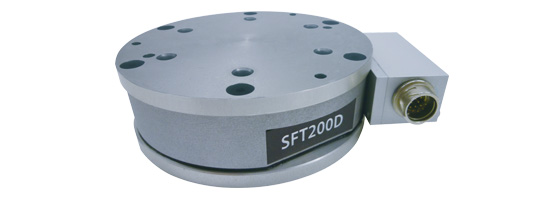

6-axis Force Torque Sensors - Standard model
■Features
●Simultaneously detects force 3-axis (Fx, Fy, Fz) and moment (Mx, My, Mz)
●Possible to measure static and dynamic operation
●High responsiveness of 1kHz that captures quick changes
●Built-in amplifier and microcomputer for load measurement
●Built-in low-pass filter function
●Possible to detect overload and abnormal temperature
●High rigidity with an allowable overload of 500%
●Easy connection between sensor and cable
■Specifications
Items | SFT200D | SFT1KN | SFT4KN | SFT7KN | SFT10KNA | |
---|---|---|---|---|---|---|
Rated load | Fx, Fy | 200N | 700N | 3,000N | 4,500N | 6,500N |
Fz | 200N | 1,000N | 4,000N | 7,000N | 10,000N | |
Mx, My | 4Nm | 30Nm | 150Nm | 400Nm | 600Nm | |
Mz | 4Nm | 30Nm | 150Nm | 400Nm | 600Nm | |
Measurement resolution |
Fx, Fy | < 0.04N | < 0.2N | < 1.0N | < 1.5N | < 2.5N |
Fz | < 0.05N | < 0.2N | < 1.0N | < 2.0N | < 2.5N | |
Mx, My | < 0.001Nm | < 0.005Nm | < 0.03Nm | < 0.1Nm | < 0.1Nm | |
Mz | < 0.002Nm | < 0.01Nm | < 0.06Nm | < 0.1Nm | < 0.2Nm | |
Power supply voltage | DC +5V (or +24V) | |||||
Power consumption | 200mA (150mA) | |||||
Output method | USB2.0, RS-422, Ethernet, CAN2.0A | |||||
Responsiveness | 1kHz | |||||
Non-linearity | ±3%F.S. | ±1%F.S. | ||||
Other axis sensitivity | ±5%F.S. | ±2%F.S. | ||||
Allowable overload | 500% | |||||
Operating temperature | 0 to +50 degree C | |||||
Humidity range | 15%R.H. to 85%R.H. w/o condensation | |||||
Diameter | 96mm | 110mm | 145mm | 160mm | 180mm | |
Height | 32.5mm | 40mm | 57mm | 69.5mm | 69.5mm | |
Weight | 500g | 810g | 1,800g | 3,080g | 3,380g |
Please feel free to contact us if any requirement.

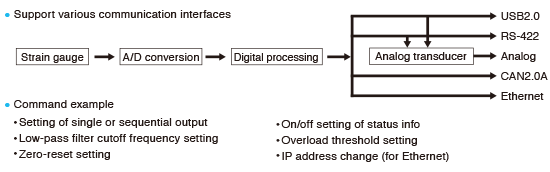

■Interface specifications
SFT200H |
SFT1KI |
6 axis Force Torque Sensors - Hollow structure model
■Features
●Hollow structure
●Simultaneously detects force 3-axis (Fx, Fy, Fz) and moment (Mx, My, Mz)
●Possible to measure static and dynamic operation
●High responsiveness of 1kHz that captures quick changes
●Built-in amplifier and microcomputer for load measurement
●Support RS-422 interface
●Built-in low-pass filter function
●Possible to detect overload and abnormal temperature
●Easy connection between sensor and cable (SFT200H)
●Cable can be pulled out from hollow part (SFT200I and SFT1KI)
■Specifications
Items | SFT200H/200I | SFT1KI | |
---|---|---|---|
Rated load | Fx, Fy | 200N | 700N |
Fz | 200N | 1,000N | |
Mx, My, Mz | 4Nm | 40Nm | |
Measurement resolution |
Fx, Fy | < 0.05N | < 0.3N |
Fz | < 0.05N | < 0.3N | |
Mx, My | < 0.001Nm | < 0.00625Nm | |
Mz | < 0.002Nm | < 0.0125Nm | |
Power supply voltage | DC +24V | DC +5V | |
Power consumption | 150mA | 250mA | |
Output method | RS-422 | ||
Responsiveness | 1kHz | ||
Non-linearity | ±3%F.S. | ±1%F.S. | |
Other axis sensitivity | ±5%F.S. | ±3%F.S. | |
Allowable overload | 500% | 500% | |
Operating temperature | 0 to +50 degree C | ||
Humidity range | 15%R.H. to 85%R.H. w/o condensation | ||
Diameter | 80mm | 90mm | |
Hollow diameter | 30mm | 30mm | |
Height | 24.5mm | 30.5mm | |
Weight | 220g | 360g |
Please feel free to contact us if any requirement.
SFT3KC |
SFT200FT |
6 axis force torque sensor - Small & Moment strengthening model -
■Features
●Small size and moment strengthening
●Simultaneously detects force 3-axis (Fx, Fy, Fz) and moment (Mx, My, Mz)
●High responsiveness of 1kHz that captures quick changes
●Built-in amplifier and microcomputer for load measurement
●Support RS-422 interface
●Built-in low-pass filter function
●Possible to detect overload and abnormal temperature
●Easy connection between sensor and cable
●Optimal form for collaborative robots
■Specifications
Items | SFT1KC | SFT3KC | SFT200FT | |
---|---|---|---|---|
Rated load | Fx, Fy | 700N | 1,500N | 200N |
Fz | 1,000N | 3,000N | 200N | |
Mx, My, Mz | 40Nm | 150Nm | 20Nm | |
Measurement resolution |
Fx, Fy | < 0.4N | < 0.5N | < 0.1N |
Fz | < 0.4N | < 1.0N | < 0.1N | |
Mx, My, Mz | < 0.01Nm | < 0.03Nm | < 0.01Nm | |
Power supply voltage | DC +5V | DC +24V | ||
Power consumption | 250mA | 200mA | ||
Output method | RS-422 | |||
Responsiveness | 1kHz | |||
Non-linearity | ±3%F.S. | ±1%F.S. | ±3%F.S. | |
Other axis sensitivity | ±5%F.S. | ±3%F.S. | ±5%F.S. | |
Allowable overload | 500% | |||
Operating temperature | 0 to +50 degree C | |||
Humidity range | 15%R.H. to 85%R.H. w/o condensation | |||
Diameter | 80mm | 120mm | 80mm | |
Height | 30.5mm | 44.5mm | 38.0mm | |
Weight | 300g | 980g | 420g |
Please feel free to contact us if any requirement.
Options

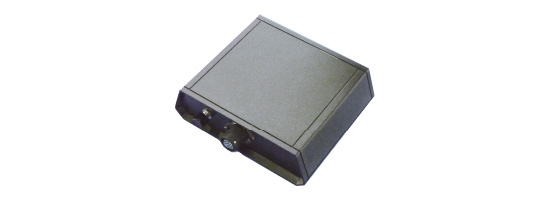

Analog transducer DA-x-SFT x : U (USB I/F), R (RS-422 I/F)
■Features
●Change to analog signals from USB or RS-422
●Can supply voltage (+5V or +24V) to sensor
●Support zero-reset function
Input signal | USB or RS-422 |
Output signal | Analog 6ch, ±10V output (at rated load) |
Supply voltage | DC +24V |
Power consumption | 300mA |
Length of cable | 2m |
Zero-reset function | Support |

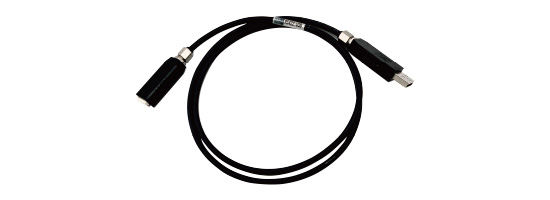

USB conversion cable
■Features
